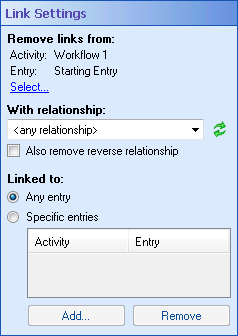

Link Settings

This property box lets you configure which document relationship links the Delete Link activity will remove.

To configure link settings

1. Add the Delete Link activity to your workflow definition by dragging it from the Toolbox Pane and dropping it in the Designer Pane.
2. Select the activity in the Designer Pane.
3. In the Link Settings property box, in the Properties Pane, configure the following settings to choose which documents to delete links between and which type of links to delete.



4. Under Remove links from, click the Select link to choose an entry to remove links from. Choose an entry from the Select Entry dialog box.
5. Use the drop-down menu under With relationship to choose which type of document relationship to remove between the entries. If you want to remove all relationships between the selected entry and the entries specified below, choose <any relationship>. More information.
6. Optional: Click Refresh to update the list of links to reflect any recent changes to the link relationships available.
7. Select the checkbox to also remove all links with the reverse relationship of the relationship chosen in the drop-down menu.
8. Specify if you want to remove relationships to Any entry the entry selected above has a relationship with or only relationships with Specific entries.
9. If you select to remove links from only specific entries, click Add and use the Select Entry dialog to choose which entries to remove links from.
10. Optional: Click Remove to delete the selected entry from the list of entries you want to remove links from.
